NYS373

Rean-Neutrik

NYS373

$3.12

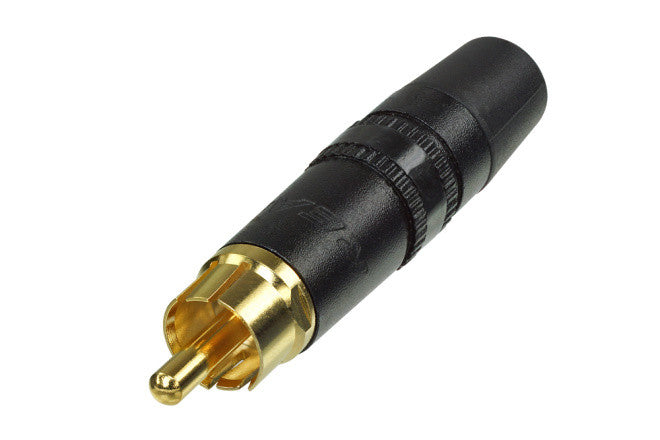

Phono plug, black shell, gold plated contacts, rubber boot for best antikink protection, chuck type strain relief for cable O.D. 3.5 to 6.1 mm, color coding ring

Product
Title : NYS373-*

Environmental
Solderability : Complies with IEC 68-2-20
Temperature range : -25 °C to +70 °C
Electrical
Dielectric strength : 0.5 kVdc
Insulation resistance : ≥ 1 GΩ
Rated current : depends on mated connector
Contact resistance : depends on mated connector
Material
Contact plating : Au
Contacts : Brass (CuZn39Pb3)
Shell : Zinc diecast (ZnAl4Cu1)
Shell plating :Black
Strain relief :Internal plastic chuck
Insulation : Thermoplastic
Mechanical
Cable O.D. : 3.5 - 6.1 mm
Lifetime : > 1000 mating cycles
Wiresize : 24 AWG
