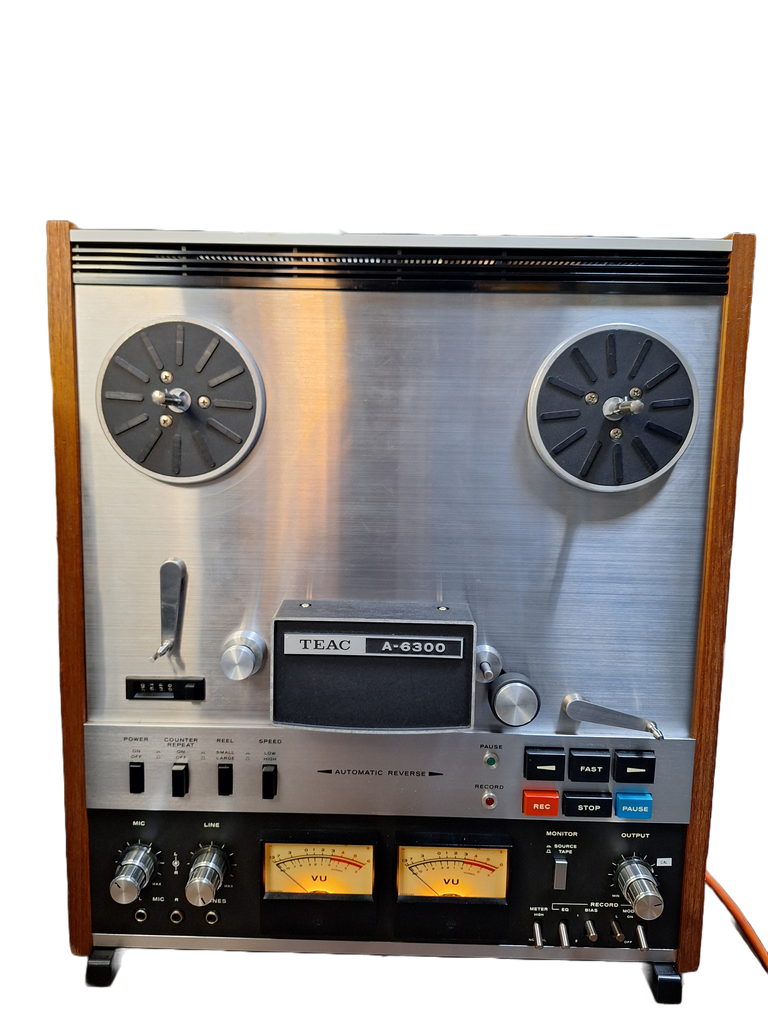

Teac A-6300 Reel to Reel
3 heads, 1/4 track, 1/4" tape.
Speed: 3 ¾ and 7½ IPS
Recently serviced and in full working condition.
New belts, pinch roller and capstan motor. Cleaned and calibrated.
Minor cosmetic blemishes due to age and use.
Description
The A-6300 is the result of a lot of careful thought and effort that TEAC put into the design of this superb semi-professional 4-track stereo tape deck.
Specifications
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 2 x playback, 1 x erase, 1 x record
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Equalization: NAB
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.18% (7 1⁄2 ips)
Frequency response: 40Hz to 24kHz (7 1⁄2 ips)
Input: 97mV (line), 0.25mV (mic)
Output: 0.3V (line)
Weight: 22kg
